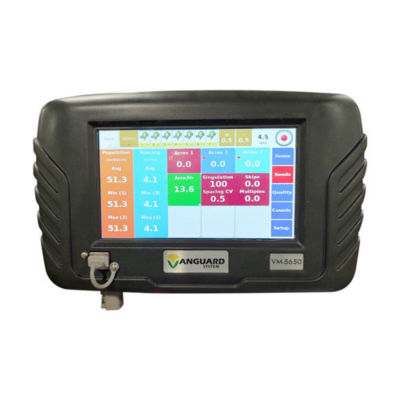

Vanguard VM-5650 Monitor Console

Vanguard VM-5650 monitor console. Onboard assistant simplifies set up. 37-pin console harness connector is wired for DICKEY-john. GPS sensor sold separately, order 502865.

502855 standard console features:

• 7" color touch screen with day/night screen modes and adjustable backlight.
• 15 ft. detachable harness cable with 37-pin round connector for Dickey-john® harness.
• 12 ft. power cable.
• RAM 1.5" ball mount with mounting bases and 4.5" double socket arm included.
• Dual functionality display. Can be used as a planter monitor or liquid fertilizer moniter.
• Console does not have onboard GPS. Use with 502865 Vanguard TRAKR GPS.

Use as a planter population monitor:

• Displays real time population by row or entire planter.
• Indicates seed flow by row with a bar graph for comparison between rows with low/no seed visual indicators.
• Monitors up to 32 rows. Automatically detects number of rows on startup.
• Singulation display with percentage of skips and doubles across all rows.
• Seed spacing displayed in inches with average/min./max. across all rows.
• Displays acres per hour, acre counter (up to 3 total), speed display (MPH).
• On board assistant simplifies set up.
• Connector configured for Dickey-john® harness. Order SH37075 adapter cable if replacing John Deere monitor or using John Deere harness.

Use as a liquid fertilizer monitor:

• On-target, low, high-rate display for each row.
• Bar graph for each row. Visual comparison of side by side performance.
• Gallons per acre by row.
• Gallons applied by field or total.
• Display for 2 different GPA rates for both popup and side by side applications (up to 16 rows ea.)
• Displays acres per hour, acre counter (up to 3 total), speed display (MPH).

To build a Visu-Flo™ liquid fertilizer monitor system order:

• • • 502855 console (order 1).
    • TRAKR GPS speed sensor, 502865.
    • Harness and bracket kit (order 1).
    • Flow meter (order 1 per row).
    • Flow meter to hose adapter (order 2 per row).
    • Hose and fittings as required.
